Floorplan - 2015 Adventurer LP (ALP) Adventurer Truck Campers 86SBS
-
-
-
-

-
Sleeps 4
-
1 Slides
-
U Shaped DinetteRear Kitchen
-
16ft Long
-
2,827 lbs
-
BROWN

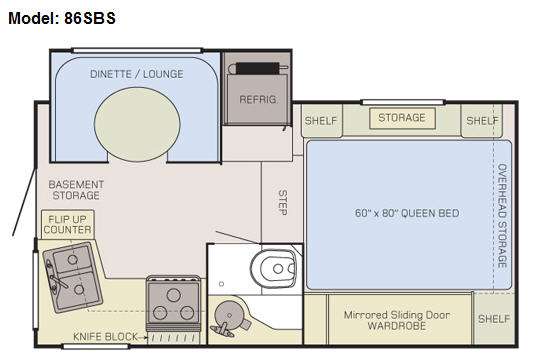

86SBS Floorplan


Specifications
Sleeps | 4 | Slides | 1 |
Length | 15 ft 10 in | Ext Width | 8 ft |
Ext Height | 9 ft | Int Height | 6 ft 6 in |
Interior Color | BROWN | Dry Weight | 2827 lbs |
Fresh Water Capacity | 44 gals | Grey Water Capacity | 31 gals |
Black Water Capacity | 31 gals | Furnace BTU | 20000 btu |
VIN | 17209 |
Description
The Adventurer 86SBS truck camper offers a single slide and a rear dinette.
As you enter the truck camper, to the left is a flip-up counter, double kitchen sink, and three burner range. The opposite side of the camper offers a slide with a dinette/lounge and refrigerator.
In the bathroom you will find a shower, toilet, and sink.
Stepping up to the front bedroom there is a queen bed, wardrobe on one side and plenty of storage and shelves.
Please note, this model fits short or long bed trucks.
Features
- TCC Tru-Composite Construction - 3 year Structural Warranty
- Lamilux 4000 HG Ext Fiberglass
- Lamilux 4000 HG Ext Front Wrap
- Insulated - Closed Cell Block Foam
- Windows - Black Framed Dark Tinted Safety Glass (N/A 80GS, 80RB)
- Windows - Black Frame Tinted Safety Glass (80GS, 80RB)
- Window - Egress in Cabover
- Roof - Thermal Polyolefin (TPO) Walk-On
- Slide - Out Electric with Manual Override (86SBS, 910DB, 910FBS, 2 on 116DS)
- New Gen Happijac - Manual Jacks (N/A 116DS)
- New Gen Happijac Electric Jacks - Wireless Remote (116DS)
- 26" Friction Hinge Entrance Door with Keyed Specific Dead Bolt & Screen
- Phat Ladder - Black (86SBS, 910DB, 910FBS, 116DS)
- Compartment Doors - Radius/Insulated (N/A 80GS)
- Sewer Hose Carrier
- Super Step Aluminum Bumper with 36" Folding Step (86SBS, 910DB, 910FBS)
- Double Density Foam Mattress (80GS)
- Microfiber Pillow Top Mattress 60" x 80" (N/A 80GS, 910DB, 116DS)
- Microfiber Pillow Top Cal-King Mattress 72" x 84" (910DB, 116DS)
- U Dinette with Large Secure Exterior Storage (86SBS, 910FBS)
- Super U Dinette (910DB)
- Dream Dinette - Quick Release Bed Conversion (86FB, 80RB, 910DB, 116DS)
- Pleated Fabric Shades (Except in Galley Metal Blinds to Meet Code)
- Cabinet Doors - Glazed Maple
- Bedspread (86SBS, 910DB, 910FBS, 116DS)
- Carpet-Full Cabover Floor (N/A 80GS)
- Mirrored Double Wardrobe Closet (N/A 80GS, 80RB)
- Contrasting Designer Interior Wall Panels
- Padded Fabric Headboard in Bedroom (N/A 80GS, 80RB)
- Sofa Residential Style (N/A 116DS)
- Roll-Over Sofa (80RB)
- Folding Entry Assist Handle (N/A 80GS, 80RB)
- Auto Changeover LPG Regulator (N/A 86SBS, 910DB, 910FBS, 116DS)
- Carbon Monoxide Detector/Alarm
- Fire Extinguisher
- Gas Leak Detector/Alarm
- Smoke Detector/Alarm
- GFI-Exterior Plug (86SBS, 910DB, 910FBS, 116DS)
- GFI-Interior Plug
- 26" Friction Hinge Entrance Door with Keyed Specific Dead Bolt & Screen
- Shower - One Piece Fiberglass (N/A 80GS, 80RB)
- Toilet - Fresh Water with Foot Flush
- Shower Pan Base (N/A 80GS)
- Shower Fiberglass Base (80RB)
- Shower - Dry Bath (910DB)
- Full Roof Skylight in Bathroom (910DB, 910FBS, 116DS)
- Skylight Over Shower (N/A 910DB, 910FBS)
- 12V Power Vent In Bathroom
- Sliding Bathroom Door - Solid Glazed Maple (N/A 80GS, 80RB, 86FB, 86SBS)
- Detachable 30 Amp Exterior Power Cord (N/A 80GS)
- Fan-Tastic Fan Exhaust Roof Vent (80GS)
- Furnace - 30,000 BTU DSI (116DS)
- Furnace - 20,000 BTU DSI (86FB, 89RB, 86SBS, 910DB, 910FBS)
- Furnace - 16,000 BTU DSI (80GS, 80RB)
- Water Heater - 6 US Gallon DSI (86SBS, 910DB, 910FBS, 116DS)
- Water Heater - 4 Gallon DSI Suburban (80GS, 80RB, 86FB, 89RB)
- Water Heater By-Pass Kit
- Water Pump - 12 Volt Demand System
- Battery Compartment - Dual (N/A 80GS, 80RB)
- Battery Compartment - Single (80GS, 80RB)
- Battery Disconnect Switch (N/A 80GS)
- Converter - 45 Amp w/Battery Charger
- Holding Tanks - Heated, Enclosed, Insulated
- Fresh Water Tank Heated, Enclosed, Insulated
- Systems Control Center - Fluids, Battery, Pump, Switches, etc. (N/A 80GS)
- Pre-Wire for Air Conditioner
- Pre-Wire for Microwave Oven
- Pre-Wire for Solar Panel (N/A 80GS, 80RB)
- Pre-Wire for Stereo and Speakers
- Pre-Wired for Electric Jacks (N/A 80GS, 80RB)
- Propane-Dual 20 lb Bottles (86SBS, 910DB, 910FBS, 116DS)
- Propane-Single 20 lb Bottle (80GS, 80RB, 86FB, 89RB)
- Shower - Outside (N/A 80GS, 80RB)
- Cable Hook-Up - Exterior (86SBS, 910DB, 910FBS, 116DS)
- Water Fill - Lockable (N/A 80GS, 80RB)
- Low Point Drain System
- Yard Light - Exterior/Rear
- Refrigerator - Dometic 2-Door 2-Way-7 cu. ft. (N/A 80GS, 80RB)
- Refrigerator - Dometic 2-Way-4 cu. ft. (80GS, 80RB)
- Stove/Oven - 3 Sealed Burners (86SBS, 910DB, 910FBS, 116DS)
- Stove Top - 3 Burner (86FB, 89RB)
- Stove Top - 2 Burner (80GS, 80RB)
- Sink-Double Acrylic with High Neck Faucet (N/A 80GS, 80RB)
- Sink-Single Acrylic with High Neck Faucet (80GS, 80RB)
- Range Hood-Powered with Fan and Light (N/A 80GS)
- Counter Extension (86SBS, 910DB, 910FBS, 116DS)
- Custom Maple Knife Rack (N/A 80GS, 80RB)
- Pantry Pull Out Shelf (910DB, 910FBS)
- Black Decor Refrigerator Panels
- Sink Cover (Cutting Board)
- 19" LCD Flat Screen 12V TV (N/A 80GS, 80RB, 116DS)
- 24" LCD Flat Screen 12V TV (910DB, 116DS)
- Air Conditioner
- Awning Patio 12V Electric (116DS)
- Awning Patio - 8' (N/A 80GS, 80RB, 116DS)
- Awning - 7' Carefree Rear 12V Power Awning (N/A 80GS, 80RB, 116DS)
- Awning - Rear Carefree "Truckin-Awn" (80GS, 80RB)
- Awning - Slide Topper (86SBS, 910DB, 910FBS, 2 on 116DS)
- Bedspread (86FB, 89RB)
- Black Holding Tank Flushing System (N/A 80GS, 80RB)
- Camper Caddy Storage System (80GS, 80RB)
- Comfort - Step Bumper (Exchange for Std. Bumper) (86SBS, 910DB, 910FBS)
- Comfort - Step Bumper (86FB, 89RB)
- Exterior BBQ Quick Disconnect (N/A 80GS, 80RB)
- Extra LPG Bottle - Inc Auto Change Over Valve (86FB, 89RB)
- Fan-tastic Fan Exhaust Roof Vent (N/A 80GS)
- Fold Down Bunk in Slide (86SBS, 910FBS)
- Folding Stove Cover/Backsplash (N/A 80GS, 80RB)
- Generator Ready (N/A 80GS, 80RB)
- Heki Skylight N/A with Fantastic Fan Opt. (N/A 80GS, 80RB)
- Generator - Onan 2500W Camp Power LPG (N/A 80GS, 80RB)
- Jack Brackets - Swing Out Dually (N/A 80GS, 80RB)
- Jacks-Pre-Wired for Electrics (80GS, 80RB)
- Microwave Oven
- New Gen Happijac Electric Jacks - Wireless Remote (N/A 80GS, 80RB, 116DS)
- Quik Bunk (Easy Access Spring Loaded Pull Down Bunk) (910DB)
- Roof Ladder "Phat Ladder" - Black (N/A 80GS, 80RB)
- Roof Ladder - Topline Black (80GS, 80RB)
- Short Box Exterior Storage Req with Gen Option (86SBS)
- Shower - Outside (80GS, 80RB)
- Skylight & Blind (N/A 80GS, 80RB, 116DS)
- Solar Panel - 110 Watt with Regulator (N/A 80GS, 80RB)
- Super Step Aluminum Bumper with 36" Folding Step (86FB, 89RB)
- Stereo - AM/FM/CD/DVD with Ext. Speakers
- Stove/Oven Upgrade - 3 Sealed Burners (86FB, 89RB)
- Theater Seating Recliners (116DS)
- TV Antenna - Amplified/Digital Signal Enabled (N/A 80GS, 80RB)
- Windows - Thermopane Dark Tinted (N/A 80GS, 80RB)
