Floorplan - 2016 Jayco Designer 37RS
-
-
-
-
1 of 6
+6-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
40ft Long
-
14,265 lbs
-
BEIGE

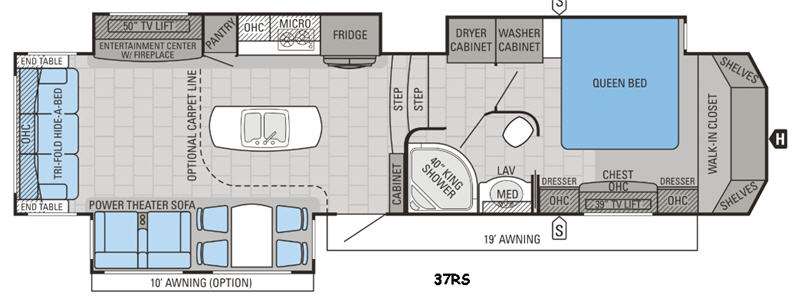

37RS Floorplan
37RS Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 39 ft 10 in | Ext Width | 8 ft 6 in |
| Ext Height | 13 ft 5 in | Int Height | 7 ft 1 in |
| Interior Color | BEIGE | Hitch Weight | 2995 lbs |
| GVWR | 17500 lbs | Dry Weight | 14265 lbs |
| Cargo Capacity | 3235 lbs | Fresh Water Capacity | 75 gals |
| Grey Water Capacity | 95 gals | Black Water Capacity | 50 gals |
| Tire Size | 17.5" H | Furnace BTU | 40000 btu |
| VIN | 1UJCJ0BU3G1S10056 |
Description
Description
This rear living Designer FW by Jayco RV offers triple slides for added interior space, a convenient kitchen island, and so much more!
Enter and find a combined kitchen and living area that is quite spacious thanks to dual opposing slides. There is a free standing dinette and power theater seating for two with cup holders along the curb side slide. The back wall features a tri-fold hide-a-bed sofa with end tables providing even more seating and added sleeping space when needed for family and friends. A nice 50" TV lift in the slide opposite the door side also features a fireplace that you are likely to enjoy during cooler weather. This slide also features the kitchen appliances.
You will easily be able to prepare and cook your family meals with added prep space found at the kitchen island where you will also find a double sink. Behind the island is a slide out refrigerator, a two burner cook top with overhead microwave oven, and pantry.
Head up the grand steps to the front master bedroom and bath. The bath is on your right at the top of the steps and features a 40" king shower, a sink with medicine cabinet, and toilet. A second bath entry door leads into the front master. Outside the bathroom door near the steps up a slide provides space for a washer and dryer if you choose to add along with the queen bed in the bedroom . There is a chest of drawers opposite the bed with lower dresser drawers on either side along with overhead storage above. You will also enjoy a 39" TV lift, and the spacious walk-in closet, plus so much more!
Enter and find a combined kitchen and living area that is quite spacious thanks to dual opposing slides. There is a free standing dinette and power theater seating for two with cup holders along the curb side slide. The back wall features a tri-fold hide-a-bed sofa with end tables providing even more seating and added sleeping space when needed for family and friends. A nice 50" TV lift in the slide opposite the door side also features a fireplace that you are likely to enjoy during cooler weather. This slide also features the kitchen appliances.
You will easily be able to prepare and cook your family meals with added prep space found at the kitchen island where you will also find a double sink. Behind the island is a slide out refrigerator, a two burner cook top with overhead microwave oven, and pantry.
Head up the grand steps to the front master bedroom and bath. The bath is on your right at the top of the steps and features a 40" king shower, a sink with medicine cabinet, and toilet. A second bath entry door leads into the front master. Outside the bathroom door near the steps up a slide provides space for a washer and dryer if you choose to add along with the queen bed in the bedroom . There is a chest of drawers opposite the bed with lower dresser drawers on either side along with overhead storage above. You will also enjoy a 39" TV lift, and the spacious walk-in closet, plus so much more!
Features
Features
Standard Features (2016)
Exterior
- Full-body automotive Cut and Buff paint package
- Wide-body, 102" frame
- Wide-stance front landing gear
- TuffShell vacuum-bonded, laminated walls
- Climate Shield
- Enclosed, insulated, heated underbelly
- High-BTU output furnace
- Astrofoil in roof and floors
- Aerodynamic front and rear cap with LED lights
- Seamless roof covering
- 12" I-Class cambered, structural-steel I-beams
- Super Lube hubs
- Completely enclosed and protected slide out mechanisms
- Frameless, dark-tinted, safety-glass windows
- 30" x 78" entry door with oversized window
- Exterior marine-grade speakers (2)
- Front awning arm convenience outlet
- ExpansiView opera-style, floor-to-ceiling dining area windows
- Enclosed, protected basement drop-frame
- Cable TV and outlet in basement
- Stor-Galore pass-through basement storage with slam latches and strut assist
- Heated, enclosed Uni-Dock utility center
- 50-amp power retractable cord reel
- 40,000-BTU furnace
- 75-gallon fresh water tank
- 50-gallon black tank capacity minimum
- Roof framed and prepped for solar panels
- Sidewall prepped for solar panels
- Cable and satellite input ports
- Digital TV antenna
- Outside grill prep
- Under-mounted spare tire
- Roof ladder
- Hitch light
- Upper-deck slide out convenience light
- MOR/ryde cargo area tool drawer
- EZ Cord – cargo area extension cord access port
Interior
- Custom residential miter-cut cherry cabinet doors with hidden hinges
- Satin-nickel, custom residential cabinet hardware
- Hardwood cherry cabinet stiles
- Hardwood framed headboard
- Hardwood hallway steps with center carpet runners
- Iron hallway assist railing
- Iron interior assist handle
- Hardwood slide out fascias
- Decorative paneling with chair rail and baseboard in select living areas
- Decorative interior entryway light fixture
- Residential-style pantry
- Trash can drawer with butcher block cutting board drawer above
- Steel ball bearing drawer guides, 75-lb. capacity with full extension
- Residential-grade, pull-out kitchen faucet
- Water heater bypass
- 23 cu. ft. residential refrigerator with water/ice in door
- 1,000-watt inverter
- Residential-grade, travertine-look vinyl flooring
- Shaw R2X stain-resistant residential carpeting
- “Night Light” toe-kick lighting in bedroom, bathroom, and kitchen
- 90-amp power center with Charge Wizard
- Closeable and directional air conditioner vents
- Tri-fold hide-a-bed sofas with ottoman
- Power theater seat sofa
- Ceiling fan (n/a 39FL)
- Class A-style hardwood ceiling mantle with LED accent lighting
- LED ceiling lights throughout
- Porcelain bath stool with foot flush
- Under-mounted stainless steel bathroom lavatory sink
- Solid surface bathroom lavatory backsplash
- Kingston Cherry cabinetry in bathrooms
- Robe hooks in bath
- Hardwood headboard
- Oversized drawer storage in bed base
- Walk-in-style front closet with dual hanging rods and cedar lining
- Mullion-style front wardrobe doors
- Washer/dryer prep (accommodates stackable unit)
- Oversized bedroom dresser storage
- Bedroom slide fascia built-in night stand storage system
- Dual USB charging centers in kitchen, near sofa in living area, and near night stand in bedroom
Customer Value Package (Mandatory)
- 15,000-BTU central air
- 20-gallon refresh rate gas/electric auto-ignition Atwood water heater
- Arched interior ceiling
- Bath skylight
- Bathroom power vent
- Bedspread
- Floor safe
- Oversized folding exterior grab handle
- Frameless G20 dark tinted windows
- LED interior lighting
- Security lights
- Slam-latch baggage doors
- Sofa and bed pillows
- Solid-surface kitchen counter tops
Jayco Luxury Fifth Wheel Package (Mandatory)
- 6-point electric auto-leveling system
- Backup camera prep
- Bluetooth/HDMI high-output entertainment system with 3-zone indoor/outdoor speakers
- Cargo accessory receiver
- Indoor/outdoor central vacuum system
- High-efficiency thermostat-controlled electric fireplace
- Keyless main entrance doors
- LED exterior lighting
- Magnum Frame System featuring Monster Beam gooseneck drop-frame
- Magnum Truss XL6 Roof System featuring 6” continuous-radius roof rafters
- MOR/ryde pin box
- Oversized battery compartment
- Painted and clear-coated gelcoat front cap
- Power kitchen vent with wall-mount controls
- Solar prep
- Helix Cooling system with Whisper Quiet technology
- Whole-coach water purification system
- Oversized, aluminum, quad entrance steps
- Carefree power awning with Flex Guard fabric shield and LED light strip
- Franklin brand residential furniture
Designer Advantage Package (Mandatory)
- 8000-lb axles
- 17.5” H-rated tires
- Mega-Wall double-layer laminated sidewalls
- 30,000-BTU dual Whisper Quiet A/C system
- 39” bedroom LED HDTV
- Tree Topper 8’ main living area slide outs
- Jayco Luxury Sleep System Gel Cool memory foam 80” mattress
- Residential dishwasher
- Gel 360 Front Cap/Rear Cap/Sidewalls/Entrance and baggage doors
- Induction-style cooktop
- 40” residential, rounded king showers
- LED-lighted slide out fascia and window treatments in living areas
- MOR/ryde LRE4100 suspension system
- Multiplex lighting
- Oversized, stainless steel, apron-style sink
- Quad, oversized, aluminum entrance steps
- Residential hardwood cabinet crown molding
- Stainless steel convection microwave
- Triple 30’s propane capacity (90 lbs. total)
Exterior Decor
- Horizon Sands Paint Package
- Carbon Steel Paint Package
- Crimson Wave Paint Package
Interior Decor
- Midnight Décor
- Rosewood Décor
- Dunes Décor
- Stormcloud Décor
Options
- Canadian Standards
- Customer Value Package (Mandatory)
15,000 BTU Central Air, 20 Gallon Refresh Rate Gas/Electric Auto Ignition Atwood Water Heater, Arched Interior Ceiling, Bath Skylight, Bathroom Power Vent, Bedspread, Floor Safe, Folding Exterior Grab Handle, Frameless Dark Tint Windows, LED Interior Lighting, Security Lights, Slam Latch Baggage Doors, Sofa and Bed Pillows, Solid Surface Kitchen Counter Tops - Customer Value Package w/ 15,000 BTU Central Air w/ Heat Pump
w/ 15,000 BTU Central Air w/ Heat Pump - Jayco Luxury Fifth Wheels Package
6-pt. Electric Auto Leveling System, Backup Camera Prep, Bluetooth/HDMI Entertainment System, Cargo Accessory Receiver, Carefree Power Awning with Flex Guard Fabric Shield and LED Light Strip,Central Vacuum, Electric Fireplace, Franklin American Made Residential Furniture, Keyless Main Entrance Door, LED Exterior Lighting, Magnum Frame System, Magnum Truss XL6 Roof System, MOR/ryde Pin Box, Oversized Battery Compartment, Oversized Aluminum Quad Entrance Steps, Painted Gelcoat Fiberglass Front Cap, Power Kitchen Vent, Solar Prep, Helix Cooling System with Whisper Quiet Technology, Water Purification System - Designer Advantage Package
8,000 lb Axles, 17.5" H Rated Tires, Mega Wall Sidewalls, 30K Dual Whisper Quiet A/C System, 39" Bedroom LED HDTV, Tree Topper 8' Main Living Area Slide rooms, Jayco Luxury Sleep System Gel Memory Foam Mattress, Drawer Style Dishwasher, Gel 360 Front Cap/Rear Cap/Sidewalls all Gelcoat Fiberglass, Induction Style Cook top, 40" Residential Rounded King Showers, LED Lighted Slide Fascias and Window Treatments, Mor/Ryde LRE4100 Rubberized Suspension System, Multiplex Lighting, Oversized Farmers Basin Sink, Residential Hardwood Cabinet Crown Molding, Stainless Steel Convection Microwave Oven, Triple 30's LP Capacity (90 lbs.) - Kingston Cherry Cabinetry Package
- Queen Bed
- Carpet in Living Area (37FB, 37RS, 39RE)
- Power Reclining Sofa (37FB, 37RS, 39RE)
- Recliner Chairs (2) ILO Theater Seating Sofa (37FB)
- 18 cu.ft. Polar Max Norcold 2 way Refrigerator w/Ice Maker
- Backup Camera Navigation
- Tailgate TV: 39" TV in cargo area
- 3rd A/C (Low Profile) (15,000 BTU) (39FL)
- Generator Prep
- 5500 Watt Generator
- Slide out Awnings
- Extreme Weather Package
110V Heat Pads on Holding Tanks, 12V Wrapped Fresh Water Line - Dual Pane All Weather Windows
- 2nd Power Awning with Fabric Shield (37FB, 37RS)
- Slide out Awnings with Metal Wrap (3) (37FB, 37RS)
- Slide out Awnings with Metal Wrap (4) (39FL)
- Slide out Awnings with Metal Wrap (5) (39RE)
- Hydraulic Disk Brakes
- Goodyear Tires
- Weber Gas Grill
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
