Floorplan - 2016 Keystone RV Springdale 266RLWE
-
-
-
-
-

-
Sleeps 6
-
1 Slides
-
Rear Living AreaU Shaped Dinette
-
29ft Long
-
6,213 lbs
-
Coffee

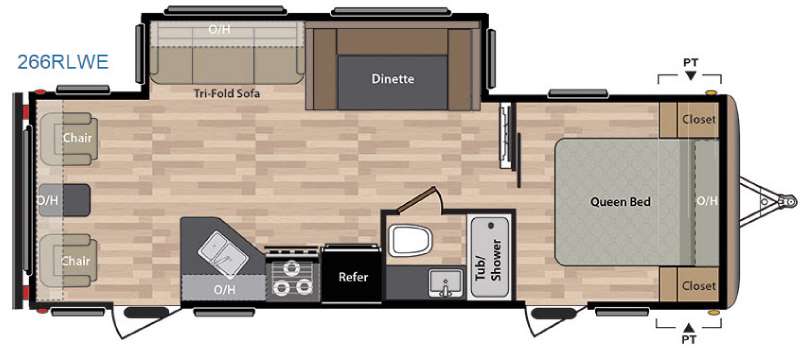

266RLWE Floorplan
Specifications
Sleeps | 6 | Slides | 1 |
Length | 28 ft 11 in | Ext Width | 8 ft |
Ext Height | 10 ft 11 in | Interior Color | Coffee |
Hitch Weight | 770 lbs | Dry Weight | 6213 lbs |
Cargo Capacity | 1557 lbs | Fresh Water Capacity | 60 gals |
Grey Water Capacity | 38 gals | Black Water Capacity | 38 gals |
Tire Size | ST205/75R15C | VIN | 4YDT26622GG100196 |
Description
Camp comfortably in this Keystone Springdale travel trailer model 266RLWE featuring double entry doors, a rear living area layout, and a large slide for added interior space.
Enter the rear most door and see two lounge chairs along the rear wall with an end table between and overhead storage the entire width of the room. Straight ahead there is a tri-fold sofa and u-shaped dinette slide. A nearby entertainment center can easily be viewed from any seating in the room.
To the right of the rear most door find kitchen amenities that allow you to easily cook food for your family. There is a large basin sink, three burner range, and refrigerator to keep your perishable things cold and fresh.
As you continue toward the front you will find just beyond the kitchen area a bathroom that features a tub/shower, toilet, and vanity with sink.
A sliding door just passed the bath leads directly into the front bedroom which provides a private entry door to the outside. You will find storage above the head of the bed, in the dual bedside closets and nightstand, plus in the front pass-through compartment outside, and so much more!
Features
- Diamond Plate
- XL Entry Assist Handle
- Powder Coated I-Beam Frame
- Easy Ultralube Axles
- Dual Battery Rack
- 2 Exterior Speakers
- Oversized Pass Thru Storage
- Cambered chassis
- Exterior Shower
- E-Z Open Entry Step
- Adjustable Power Awning
- Outside 110 receptacle
- Arctic Package
- Spread Axle (Models w/Slides)
- Full Length Outriggers on Frame
- Two 30 lb. LP Bottles
- TV Antenna with Booster
- Hurricane Straps Reinforced Structure
- Radial Tires
- 96" Exterior width
- Black Tank Flush
- 50 Amp Service w/Detachable Cord (Select Models)
- Large Medicine Cabinet
- Full Strutted Storage under Master Bed
- Residential Microwave
- 7 Cu. Ft. Refrigerator
- Ball Bearing Drawer Guides
- High Rise Kitchen Faucet
- 18" Oven w/3 Burner Cooktop
- 12 Volt 55 Amp Converter
- Forced Air DSI 30K BTU Furnace w/Thermostat (Ducted most models)
- Skylight Over Tub/Shower
- 82" Vaulted Ceiling
- Porcelain Foot Flush Toilet
- 2x3 Floor Construction 12" OC w/5/8th Decking
- 4 1/2” Crowned Roof
- R-7 Insulation-Floor, Roof, Walls
- Pleated Night Shades in Living Area
- Nightstand w/Drawer in Bedroom
- AM/FM Bluetooth CD/DVD Ent. System
- Monitor Panel
- Residential Refrigerator (38BH, 38FL, 38FQ only)
- Reversible Dinette Cushions
- High Impact Acrylic Sink
- "Do More Dinette" Table
- 13,500 BTU Air Conditioner
- 6 Gal. Gas/Electric DSI Water Heater
- Flex Pex Tubing with 10 Year Warranty
- Tub Surround
- RG6 Cable and Satellite Wiring
- 16" on Center Raised Roof Truss System
- 16" on Center Side Walls
- Laminated Fiberglass Sidewalls
- XL Entry Assist Handle
- Powder Coated I-Beam Frame
- Easy Ultralube Axles
- Dual Battery Rack
- 2 Exterior Speakers
- Oversized Pass Thru Storage
- Two Heavy Duty Stabilizer Jacks
- Cambered chassis
- E-Z Open Entry Step
- Electric Adjustable Front Landing Gear
- Adjustable Power Awning
- Outside 110 receptacle
- Arctic Package
- Spread Axle (Models w/Slides)
- Full Length Outriggers on Frame
- Two 30 lb. LP Bottles
- TV Antenna with Booster
- Hurricane Straps Reinforced Structure
- Radial Tires
- 96" Exterior width
- 50 Amp Service w/Detachable Cord (Select Models)
- Large Medicine Cabinet
- Full Strutted Storage under Master Bed
- Nightstand
- Residential Microwave
- 7 Cu. Ft. Refrigerator
- Ball Bearing Drawer Guides
- High Rise Kitchen Faucet
- 18" Oven w/3 Burner Cooktop
- 12 Volt 55 Amp Converter
- Forced Air DSI 30K BTU Furnace w/Thermostat (Ducted most models)
- Skylight Over Tub/Shower
- Porcelain Foot Flush Toilet
- 2x3 Floor Construction 12" OC w/5/8th Decking
- 4 1/2” Crowned Roof
- R-7 Insulation-Floor, Roof, Walls
- Pleated Night Shades in Living Area
- AM/FM Bluetooth Soundbar Ent. System
- Monitor Panel
- Reversible Dinette Cushions
- High Impact Acrylic Sink
- "Do More Dinette" Table
- 13,500 BTU Air Conditioner
- 6 Gal. Gas/Electric DSI Water Heater
- Flex Pex Tubing with 10 Year Warranty
- Tub Surround
- RG6 Cable and Satellite Wiring
- 16" on Center Raised Roof Truss System
- 16" on Center Side Walls
- 2 - 30# LP Bottles w/auto change over
- Manual Stabilizer Jacks (4)* (non SSR floorplans)
- Power Stabilizer Jacks (SSR Models Only)
- Spread Axle (models w/Slides)
- E-Z Open Entry Step
- Radial Tires
- 13.5K Ducted A/C (N/A 179, 189, 201, 202, 212)
- Tub Surround
- 2x3 Floor Construction 12” OC with 5/8ths Decking
- 60 Gallon Fresh Water Tank
- One Piece Extruded I-Beam
- Pre-Drilled & Screwed Residential Cabinetry
- Cambered Chassis
- 16” on Center Side Walls
- 16” on Center Raised Roof Truss System
- R-7 Insulation-Roof, Walls
- Fully Enclosed & Heated Underbelly (Models w/Slides)
- Weather Treated I-Beam Frame
- Diamond Plate
- Tinted Safety Glass
- Roof Ladder (SSR Floorplans)
- Dynaspan Decking w/25 Year Warranty
- R-20 Floor (Arctic Package Only)
- Easy Ultralube Axles
- Dual Battery Rack
- LED Light in Pass Thru
- Backed for Ladder (N/A 220, 240)
- 2 Exterior Speakers
- 2 Interior Speakers
- AM/FM/CD/DVD Bluetooth MP3 Player
- Cable and Satellite Prep
- Exterior TV Bracket (SSR FPs)
- High Impact Acrylic Sink
- Steel Ball Bearing Drawer Guides
- Residential Lighting in Slide
- Spice Rack below sink
- 22” Oven with 3 Burner Cooktop
- 6.2 cu. ft. 110V/LP Fridge
- Microwave
- Do More Dinette Table (Except 179, 189, 220, 260)
- Vented Range Hood w/Light
- Sink Cover
- Stainless Steel appliances
- Outside Shower
- Fabric Pleated Night Shades in Living Area
- Skylight Over Tub/Shower
- Forced Air DSI Furnace w/Thermostat
- 6 Gal. Gas/Electric DSI Water Heater
- 55 amp Converter
- Tri-Fold Sleeper Sofa (SSR Models)
- Jack Knife Sofa Bed (N/A 179, 202, 212, 258)
- RG6 Cable and Satellite Wiring
- Fully Strutted Storage Under Master Bed
- Reversible Dinette Cushions
- Dual Functionn Cordless Vacuum
- Laundry Chute
- Water Heater Bypass
- Porcelain Foot Flush Toilet
- Adjustable Power Awning w/LED Lights
- XL Entry Assist Handle
- Outside TV Hookup (N/A 225)
- Black Tank Flush
- Large Medicine Cabinet
- Monitor Panel
- Flex Pex Tubing with 10 Year Warranty
- LED Overhead Lighting
- Safety chains
- Electric brakes
- L.P. gas detector
- Fire extinguisher
- Tinted safety glass
- Emergency brake-away switch
- Carbon monoxide detector
- Smoke detector
- GFI electrical outlets
Options
- Aluminum Wheels
- Spare Tire and Carrier
- Four Heavy Duty Stabilizer Jacks
- Tri-Fold Sleeper Sofa
- 29" TV (39" on some models)
- Freestanding Dinette
- 15,000 BTU A/C
- Aluminum Wheels
- Spare Tire and Carrier
- Tri-Fold Sleeper Sofa
- 29" TV (39" on some models)
- Freestanding Dinette
- 15,000 BTU Air Conditioner
- Power Tongue Jack
- Aluminum Rims
- LED Television
- 15K BTU A/C
- Spare Tire
