1 of 1

-
Sleeps 4
-
1 Slides
-
Outdoor KitchenU Shaped Dinette
-
28ft Long
-
5,594 lbs
-
Cedar

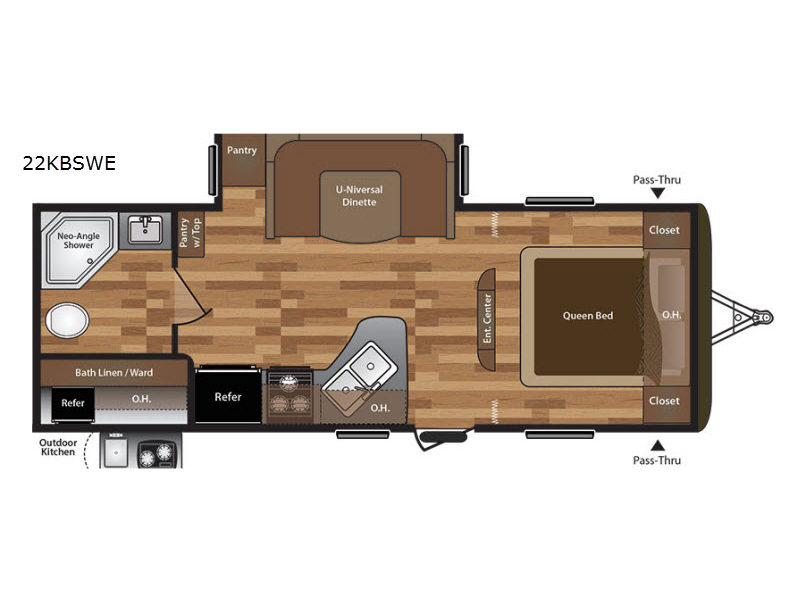

22KBSWE Floorplan
22KBSWE Floorplan
Specifications
Specifications
Sleeps | 4 | Slides | 1 |
Length | 27 ft 6 in | Ext Width | 8 ft |
Ext Height | 10 ft 3 in | Int Height | 6 ft 6 in |
Interior Color | Cedar | Hitch Weight | 658 lbs |
Dry Weight | 5594 lbs | Cargo Capacity | 2064 lbs |
Fresh Water Capacity | 60 gals | Grey Water Capacity | 38 gals |
Black Water Capacity | 38 gals | Tire Size | ST205/75R15C |
Furnace BTU | 30000 btu | Available Beds | Queen |
Refrigerator Size | 6 cu ft | Cooktop Burners | 3 |
LP Tank Capacity | 60 | AC BTU | 13500 btu |
Axle Count | 2 | Number of LP Tanks | 2 |
Shower Type | Neo-Angled | VIN | 4YDT22K20HN203614 |
Description
Description
This Keystone Hideout travel trailer model 22KBSWE offers a spacious interior with rear bath layout, sleeping for four, and an outdoor kitchen for the chef in the family to enjoy!
Step inside and notice the front queen bed with a storage closet on each side of the bed along with overhead cabinets as well. There is an entertainment center just off the foot of the bed that you can draw side curtains to on both sides for a bit more privacy in the bedroom at night.
In the main living space you will find plenty of seating at the U-Niversal u-shaped dinette. This slides out along with a large pantry for all of your dry food storage needs. The dinette can easily be transformed into added sleeping space for extra guests at night when needed.
In the kitchen cook up light meals and snacks while you are away. There is a refrigerator, a three burner range, overhead microwave oven, and double sink making cleaning up a cinch. There is also a second pantry with counter top adjacent to the dinette slide.
The rear bath is spacious and features a convenient neo-angle shower, toilet, and vanity with sink. There is also a bath linen/wardrobe with overhead storage.
Along the outside of this Hideout model 22KBSWE find a front pass-through storage space for all of your outdoor camping gear, and a handy outside kitchen which includes a refrigerator, overhead cabinet, a single sink, and swing out two burner cook-top, plus more!
Step inside and notice the front queen bed with a storage closet on each side of the bed along with overhead cabinets as well. There is an entertainment center just off the foot of the bed that you can draw side curtains to on both sides for a bit more privacy in the bedroom at night.
In the main living space you will find plenty of seating at the U-Niversal u-shaped dinette. This slides out along with a large pantry for all of your dry food storage needs. The dinette can easily be transformed into added sleeping space for extra guests at night when needed.
In the kitchen cook up light meals and snacks while you are away. There is a refrigerator, a three burner range, overhead microwave oven, and double sink making cleaning up a cinch. There is also a second pantry with counter top adjacent to the dinette slide.
The rear bath is spacious and features a convenient neo-angle shower, toilet, and vanity with sink. There is also a bath linen/wardrobe with overhead storage.
Along the outside of this Hideout model 22KBSWE find a front pass-through storage space for all of your outdoor camping gear, and a handy outside kitchen which includes a refrigerator, overhead cabinet, a single sink, and swing out two burner cook-top, plus more!
Features
Features
Standard Features (2017)
Luxury Exterior (East) TT
- Diamond Plate
- Black Tank Flush
- E-Coated Wheels
- Exterior TV Hookup/Cable & Bracket
- Powder Coated I-Beam Frame
- Full Length Outriggers
- Two 30 lb. LP Bottles
- Black Radius Window Frames
- Cable Hook Up
- Radius Entry Doors w/Integrated Struts
- Hose Storage in the Bumper
- Rain Gutters with Down Spouts
- Roto-Cast Seamless Holding Tanks
- Four Heavy Duty Stabilizer Jacks
- Cambered chassis
- Lighted Adjustable Power Awning
- Outside 110 receptacle
- XL Entry Assist Handle
- Cold Mountain Package
- Easy Lube Axles
- Dual Battery Rack
- Exterior Speakers
- TV Antenna with Booster
- Full Walk on Roof
- Oversized Pass Thru Storage
- .024 Gauge Aluminum Siding
- Four Stage Slide Room Seals
- Hurricane Straps Reinforced Structure
- Radial Tires
- 96" Exterior width
Luxury Interior (East) TT
- Full Strutted Storage under Master Bed
- Interior Surround Sound Speakers
- Hidden Laundry Chute
- Monitor Panel
- Residential Refrigerator (38BHDS, 38FDDS, 38FKDS, 38FQDS only)
- 12 Volt 55 Amp Converter
- Built-In 30,000 BTU Furnace
- 81” Interior Height
- Foot Flush Toilet
- Pre-Drilled & Screwed Residential Cabinetry Throughout
- Loomed Wiring
- Reversible Dinette Cushions
- Pleated Shades in Living Area
- HD LED TV
- Bluetooth DVD/CD/MP3 Stereo
- Microwave
- 6 Cu. Ft. Refrigerator
- Ball Bearing Drawer Guides
- 13,500 BTU Air Conditioner
- Flex Pex Tubing with 10 Year Warranty
- Tub Surround
- RG6 Cable and Satellite Wiring
- 4 1/2” Crowned Roof
- Range with Hi-Output Burner
- High Rise Kitchen Faucet
Luxury Safety (East) TT
- Safety Chains
- Electric Brakes
- LP Gas Detector
- Fire Extinguisher
- Tinted Safety Glass
- Break Away Switch
- Carbon Monoxide Detector
- Smoke Detector
- GFI Electrical Outlets
Exterior Luxury FW
- Hideout Patented Hitch Vision
- Electric Adjustable Front Landing Gear
- Black Tank Flush
- XL Entry Assist Handle
- Cold Mountain Package
- Easy Lube Axles
- Dual Battery Rack
- Exterior Speakers
- TV Antenna with Booster
- Full Walk On Roof
- Oversized Pass Thru Storage
- Rain Gutters with Down Spouts
- Roto-Cast Seamless Holding Tanks
- Four Heavy Duty Stabilizer Jacks
- Cambered chassis
- Exterior Shower
- Gel Coated MaxTurn Fiberglass Front Cap
- Lighted Adjustable Power Awning
- Outside 110 receptacle
- Exterior TV Hookup/Cable & Bracket
- Powder Coated I-Beam Frame
- Full Length Outriggers
- Two 30 lb. LP Bottles
- Black Radius Window Frames
- Cable Hook Up
- Radius Entry Doors w/Integrated Struts
- Hose Storage in the Bumper
- Four Stage Slide Room Seals
- Hurricane Straps Reinforced Structure
- Radial Tires
- 96" Exterior width
Interior Luxury FW
- Tri-Fold Sleeper Sofa
- Full Strutted Storage under Master Bed
- Interior Surround Sound Speakers
- Microwave
- 6 Cu. Ft. Refrigerator
- 12 Volt 55 Amp Converter
- Built-In 30,000 BTU Furnace
- Flex Pex Tubing with 10 Year Warranty
- Foot Flush Toilet
- Pre-Drilled & Screwed Residential Cabinetry Throughout
- 4 1/2” Crowned Roof
- Range with Hi-Output Burner
- High Rise Kitchen Faucet
- Pleated Shades in Living Area
- HD LED TV
- Bluetooth DVD/CD/MP3 Stereo
- Monitor Panel
- Ball Bearing Drawer Guides
- 13,500 BTU Air Conditioner
- Gas/Electric DSI Water Heater
- Tub Surround
- RG6 Cable and Satellite Wiring
- Loomed Wiring
- Reversible Dinette Cushions
Safety Luxury FW
- Safety Chains
- Electric Brakes
- LP Gas Detector
- Fire Extinguisher
- Tinted Safety Glass
- Break Away Switch
- Carbon Monoxide Detector
- Smoke Detector
- GFI Electrical Outlets
Exterior Luxury Features (West) TT
- Diamond Plate
- Black Tank Flush
- E-Coated Wheels
- Exterior TV Hookup/Cable & Bracket
- Full Length Outriggers
- Two 30 lb. LP Bottles
- Black Radius Window Frames
- Cable Hook Up
- Radius Entry Doors w/Integrated Struts
- Hose Storage in the Bumper
- Rain Gutters with Down Spouts
- Roto-Cast Seamless Holding Tanks
- Four Heavy Duty Stabilizer Jacks
- Cambered chassis
- Exterior Shower
- Lighted Adjustable Power Awning
- Outside 110 receptacle
- XL Entry Assist Handle
- Cold Mountain Package (N/A on 19FLB, 21FQ, 22RB, 23RKS, 24BH, 27RB)
- Easy Lube Axles
- Dual Battery Rack
- Exterior Speakers
- TV Antenna with Booster
- Seamless One Piece Full Walk On Roof
- Oversized Pass Thru Storage
- .024 Gauge Aluminum Siding
- Four Stage Slide Room Seals
- Hurricane Straps Reinforced Structure
- Radial Tires
- 96" Exterior width
- Solar Prep
Interior Luxury Standards (West) TT
- Full Strutted Storage under Master Bed
- Interior Surround Sound Speakers
- Monitor Panel
- Tri-fold sleeper sofa (Select Models)
- 12 Volt 55 Amp Converter
- Built-In 30,000 BTU Furnace (N/A on 19FLB, 21FQ)
- 78” Interior Height
- Foot Flush Toilet
- Pre-Drilled & Screwed Residential Cabinetry Throughout
- Loomed Wiring
- 20K BTU Furnace (19FLB, 21FQ)
- Reversible Dinette Cushions
- Pleated Shades in Living Area
- LED TV (Most Models)
- Bluetooth AM/FM/DVD/CD/MP3 Stereo
- Microwave
- 6 Cu. Ft. Refrigerator
- Ball Bearing Drawer Guides
- 13,500 BTU Air Conditioner
- Flex Pex Tubing with 10 Year Warranty
- Tub Surround
- RG6 Cable and Satellite Wiring
- 4 1/2” Crowned Roof
- Range with Hi-Output Burner
- Gas/Electric DSI Water Heater
- High Rise Kitchen Faucet
Safety Luxury (West) TT
- Safety Chains
- Electric Brakes
- LP Gas Detector
- Fire Extinguisher
- Tinted Safety Glass
- Break Away Switch
- Carbon Monoxide Detector
- Smoke Detector
- GFI Electrical Outlets
Exterior LHS TT
- Diamond Plate
- Outside 110 receptacle
- Powder Coated I-Beam Frame
- Full Length Outriggers
- Exterior Speakers
- TV Antenna with Booster
- Full Walk On Roof
- Oversized Pass Thru Storage
- .024 Gauge Aluminum Siding
- Four Stage Slide Room Seals
- Hurricane Straps Reinforced Structure
- Radial Tires
- 96" Exterior width
- Lighted Adjustable Power Awning
- E-Coated Wheels
- Exterior TV Hookup/Cable & Bracket
- Easy Lube Axles
- Dual Battery Rack
- Black Radius Window Frames
- Cable Hook Up
- Radius Entry Doors w/Integrated Struts
- Hose Storage in the Bumper
- Rain Gutters with Down Spouts
- Roto-Cast Seamless Holding Tanks
- Two Heavy Duty Stabilizer Jacks
- Cambered chassis
Interior LHS TT
- AM/FM w/MP3/Bluetooth
- Microwave
- 6 Cu. Ft. Refrigerator
- 12 Volt 55 Amp Converter
- Built-In 30,000 BTU Furnace
- 81” Interior Height
- Foot Flush Toilet
- Pre-Drilled & Screwed Residential Cabinetry Throughout
- Loomed Wiring
- Reversible Dinette Cushions
- Interior Surround Sound Speakers
- Hidden Laundry Chute
- Monitor Panel
- Ball Bearing Drawer Guides
- 13,500 BTU Air Conditioner
- Flex Pex Tubing with 10 Year Warranty
- Tub Surround
- RG6 Cable and Satellite Wiring
- 4 1/2” Crowned Roof
- Range with Hi-Output Burner
Safety LHS TT
- Safety Chains
- Electric Brakes
- LP Gas Detector
- Fire Extinguisher
- Tinted Safety Glass
- Break Away Switch
- Carbon Monoxide Detector
- Smoke Detector
- GFI Electrical Outlets
Options
Luxury TT (East) Options
- Exterior Shower
- Spare Tire and Carrier
- Rear Ladder (Most Models)
- Tri-Fold Sleeper Sofa
- Freestanding Dinette (Select Models)
- 15,000 BTU Air Conditioner
- Gas/Electric DSI Water Heater
Luxury TT (West) Options
- Spare Tire and Carrier
- Rear Ladder (Most Models)
- 15,000 BTU Air Conditioner
Luxury FW Options
- Spare Tire & Carrier
- Rear Ladder (Most Models)
- Freestanding Dinette (Select Models)
- 15,000 BTU Air Conditioner
LHS TT Options
- Exterior Shower
- Spare Tire and Carrier
- Rear Ladder (Most Models)
- HD LED TV
- 15,000 BTU Air Conditioner
See us for a complete list of features and available options!
All standard features and specifications are subjects to change.
