Floorplan - 2017 Keystone RV Outback 277RL
-
-
-
-
-

-
Sleeps 6
-
2 Slides
-
Rear Living AreaOutdoor Kitchen
-
35ft Long
-
7,525 lbs
-
Teak

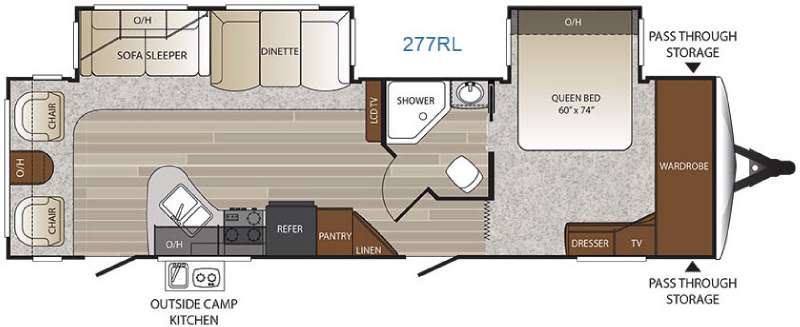

277RL Floorplan
Specifications
Sleeps | 6 | Slides | 2 |
Length | 34 ft 10 in | Ext Width | 8 ft |
Ext Height | 11 ft 4 in | Interior Color | Teak |
Hitch Weight | 935 lbs | Dry Weight | 7525 lbs |
Cargo Capacity | 1975 lbs | Fresh Water Capacity | 53 gals |
Grey Water Capacity | 76 gals | Black Water Capacity | 38 gals |
Tire Size | ST225/75R15D | Furnace BTU | 30000 btu |
VIN | 4YDT27729HB451285 |
Description
You will enjoy spending time camping in this Keystone Outback Diamond Super Lite travel trailer 277RL. With its rear living layout and dual slides you will be amazed at the roominess inside.
Enter the door closest to the rear and be greeted by a nice living space featuring two lounge chairs along the rear back wall. There are overhead cabinets for storage above and an end table between the two chairs.
Round the corner and see that the seating continues with a sofa sleeper including overhead storage along with a booth dinette in a nice slide out providing added foot traffic space inside. An LCD TV is centrally located and can easily be viewed from any seating in the room.
The kitchen supplies you with all the appliances and storage that allows you to prepare and cook food for your family. There is a double kitchen sink that makes cleaning up a cinch just to the right of that rear most entry door. Next, find a three burner range, refrigerator for your perishables, and a pantry for all of your canned and dry good storage. There are also overhead cabinets and lower cupboards and drawers too.
A corner linen cabinet follows the kitchen pantry and is conveniently located across from the door to the bathroom. There is also a second side entry door which makes using the bathroom from outside very convenient. Inside the bath find an angled shower, toilet and sink, plus a sliding door that leads right into the front master bedroom.
The front bedroom offers a place to relax and sleep with a slide out queen size bed including overhead storage. There is also a full front wall wardrobe for clothing, and a dresser plus TV opposite the bed.
On the outside of this Outback unit enjoy extra storage space in the front pass-through compartment, plus there is an outdoor kitchen which features a single sink, and two burner cook-top stove, and so much more!
Features
- Upgraded furniture package
- Hand glazed mystic maple cabinetry
- Lounge dinette
- 36” flush floor slides
- Large panoramic windows
- Pre-drilled and screwed cabinetry
- Custom designed box valance with soft curtains
- Linoleum flooring
- Large wood side drawers with steel guides
- Water soil, stain resistant fabrics
- Large overhead cabinets
- HDTV
- Pleated shades*
- Vaulted ceiling
- Floor lights (2)
- USB charging port
- LED lighting
- Batten ceiling accent
- Deluxe sofa sleeper
- iN-Command Smart Automation
- Single basin sink with 3” drains
- Trash can storage*
- Two door 8 cu. ft. refrigerator
- High-rise faucet w/ pullout sprayer*
- High-rise faucet w/pullout sprayer*
- Utensil tray
- 3 burner range with oven*
- Microwave
- Upgraded laminate countertops
- Stainless steel appliances
- Deluxe innerspring mattress
- TV hook-up
- Jalousie windows for maximum ventilation
- Residential bedspread
- Deluxe headboard
- His and her lights
- Bedroom speakers
- 2 Full length wardrobes
- Recessed cubby storage w/ 110 volt outlets (most models)
- USB charging port
- Washer/dryer prep (326RL, 328Rl, 330RL, 334RL)
Bathroom
- Power roof vent
- Skylight over tub
- Porcelain foot flush toilet
- Tub surround*
- Radius shower (N/A 312)
- Deluxe medicine cabinet
- Large linen closet (most models)
- Stainless steel
- DVD player with bluetooth remote control app
- Two door 8 cu. ft. refrigerator
- 3 burner range with oven*
- Six gallon gas/electric DSI water heater by pass with 16.2 gallons per hour “quick recovery”*
- 13,500 BTU AC wall thermostat
- 30,000 BTU furnace
- Microwave
Exterior
- Painted fiberglass front cap w/LED strip lights and rock guard
- Black framed tinted jalousie safety glass windows
- Black tank flush
- Assist entry grab handle
- Extended drip caps and full length drip rail
- Two security lights (one on each side)*
- Porch light
- Hitch light
- Step light
- Weather encapsulated body trim
- Exterior 120V receptacle
- Heated enclosed underbelly including tanks and valves
- LP tank cover
- Automotive style fender skirts
- Double welded dual battery brackets
- Exterior speakers
- Easy lube axles
- Outside camp kitchen (most models)*
- Exterior quick connect LP hook-up
- LED hitch lights
- Satellite prep
- Slam latch baggage doors with magnetic door holders
- Rear ladder
- Power tongue jack
- Black slide out endwalls
- Water docking station
- Power stabilizer jacks
- Aluminum entry steps
- Friction hinge entry door
- Rear max cargo rack
- PanaView Patent Pending windshield (332FK, 333FE)
- Welded aluminum walls with R-7 insulation
- Solid block foam insulation
- 5" Radius, vaulted galvanized steel, tapered trusses on 16" centers
- 3/8'' roof decking
- One-piece TPO roof
- R14 blanket insulation
Floor
- 2'' welded aluminum laminated floor
- R10 block foam insulation
- Wrapped vapor barrier
- Polypropylene enclosed heated underbelly encloses tanks and valves
Chassis
- Leaf spring equalizing suspension system
- Powder coated l-beam
- 10" - electric brakes
- 15" radial tires*
- 15" spare tire, carrier & cover*
- Aluminum rims*
Utilities
- 55 amp converter
- 30 lbs. LP bottles with auto changeover
- Omni directional hands-free TV/Radio antenna
- 50-amp shore power line
- LP leak detector
- Smoke detector
- Carbon monoxide detector*
- Fire extinguisher
- Tinted safety glass windows
- Break-away switch
- Safety chains
- Manual slide backup on all electric slide outs
- 12 Volt battery disconnect
- Carbon monoxide detector
- RVIA
- Radial Tires
- 15" spare tire, carrier, and cover
- Aluminum rims
Outback Designer Package*
- Coat hooks (most models)
- Utensil rack
- Innerspring mattress
- Bedspread
- LP cover
- Pleated shades
- Decorative wall lights
- Trash can
Outback Comfort Package*
- 13,500 BTU ducted air conditioner
- TV antenna/cable
- AM/FM/CD stereo with bluetooth
- Microwave
- Entry assist handle
Outback 15th Anniversary Pearl Edition Package*
- Polar White medallion high gloss exterior fiberglass
- Frameless windows
- Theater seating (298, 325, 326, 328, 330, 332, 333, 334)
- Solid surface countertops w/pullout faucet
- Rear max cargo rack
Options
- Outback Designer Package*
- Outback Comfort Package*
- 15th Anniversary Pearl Edition Package*
- 15,000 BTU Air Conditioner
- 7.0 auto leveling system
- Free-standing dinette
- Second air conditioner
- Fireplace
