+6-
Sleeps 8
-
Front Bath
-
29ft Long
-
6,500 lbs
-
EARTHEN BROWN

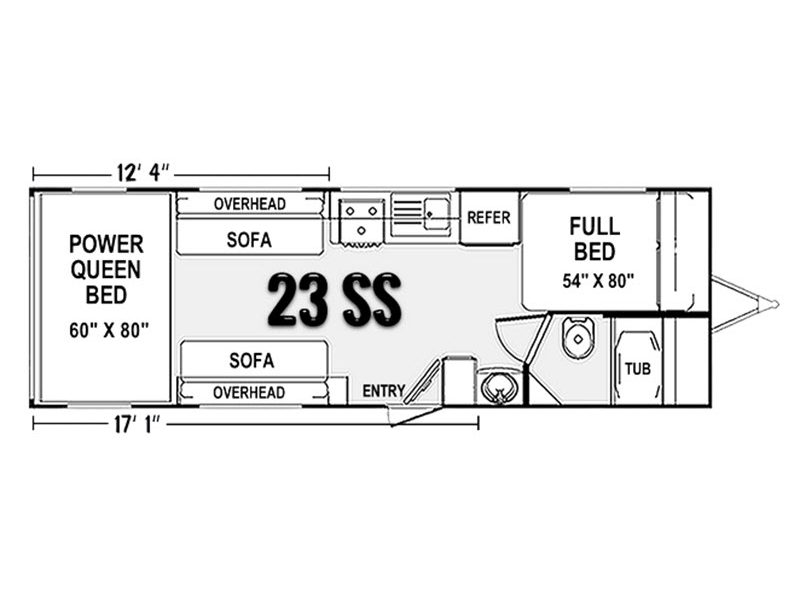

23 SS Floorplan
Specifications
| Sleeps | 8 | Length | 29 ft |
| Ext Width | 8 ft 6 in | Ext Height | 11 ft 7 in |
| Interior Color | EARTHEN BROWN | Hitch Weight | 800 lbs |
| GVWR | 9900 lbs | Dry Weight | 6500 lbs |
| Fresh Water Capacity | 100 gals | Grey Water Capacity | 40 gals |
| Black Water Capacity | 40 gals | Tire Size | 16" |
| Furnace BTU | 30000 btu | Number Of Bunks | 1 |
| Available Beds | Full | Refrigerator Type | Large Double Door |
| Refrigerator Size | 6 cu ft | Cooktop Burners | 3 |
| Number of Awnings | 1 | Axle Weight | 5440 lbs |
| Garage Size | 17 ft 1 in | LP Tank Capacity | 20 |
| Water Heater Capacity | 6 gal | Water Heater Type | DSI LP |
| AC BTU | 13500 btu | Awning Info | Manual |
| Axle Count | 2 | Number of LP Tanks | 2 |
| Shower Type | Sunken Tub/Shower | VIN | 1G9T12623JC469135 |
Description
You will find plenty of fun and adventure with this Genesis Supreme toy hauler travel trailer hooked up and and ready to tow. Model 23 SS features 12' 4" on up to 17' 1" of toy parking space for you and your family to enjoy.
Load up your toys and necessary gear easily using the rear ramp door, and head out for a weekend of fun. With this unit you will enjoy sleeping for up to eight with the rear 60" x 80" optional power queen bed including a bunk and ladder, two side fold up sofas, and a full bed up front that is 54" x 80".
While you camp and play you will enjoy having a complete kitchen and bath including a three burner range, sink, and refrigerator for your perishables. There is also a pantry cupboard just inside the door on your right for dry and canned goods, plus linens too.
The front right side corner features a private toilet and tub/shower area for added convenience. The single sink is located just outside the door for washing up.
To the left of the main entry door you will find dual opposing sofas with overhead storage above. Here you can relax and enjoy a bit of downtime, and the cabinets up above will easily keep all of your gear organized and neatly tucked away.
Make this Genesis Supreme travel trailer your camp headquarters the next time you head out for some fun!
Features
Standard Features (2018)
Fifth Wheel
Chassis
- 102" Wide body platform
- 16" Deluxe aluminum alloy wheels
- Laminated ramp door w/full-length latches (7' 29CK & 28CR, 8' all others)
- Fiberglass, laminated aluminum-framed sidewalls (standard 29CK & 28CR, Hi-gloss all others)
- Low-profile platform w/wheel wells (standard 29CK & 28CR only)
- Low-profile 10" l bean, No wheel wells (flat-to-floor) (standard 33CK & 28CR, N/A all others)
- No wheel wells (flat-to-floor) (n/a 29CK & 28CR, optional 33CK, standard all others)
- Upgraded Flex Suspension System (standard, optional on 29CK, 36CK, 28CR, 32CR, 35CR, 40CR)
- Molded front fiberglass cap (n/a 33CK, 40SRSS6, and GS models)
- Radiused front fiberglass cap with inset LED (33CK, 40SRSS6, and GS models only)
- Spare tire and carrier
- Stab jacks (2 rear) (n/a 33CK)
- 2nd grey Tank (optional, n/a 28CR and CK models)
- 20 gal fuel tank (standard 33CK, optional 36CK, 35CR, 37GS)
- 40 gal fuel tank w/pump station (n/a 33CK)
- 2nd 40 gal fuel tank w/pump station (optional 40CR, 40GS, 40SRSS6)
Exterior
- LED high-end tail lights
- LED flood lights
- LED running lights
- Slam-door luggage compartments (na/ 29CK & 28CR)
- Powered awning w/LED rope lighting
- One-piece PVC vinyl roof
- Integrated rear spoiler
- Keyless remote entry (optional)
- Walk-on roof w/folding ladder (optional 29CK & 28CR , standard all others)
- Black tank flush
- Dual 30 lb LP tanks
Interior
- Crown molding
- Solid surface galley w/covers & LED edge light (optional 29CK, standard all others)
- Galley and sofa super slide out (GS models only)
- Carpet kit (optional 29CK & 28CR, standard all others)
- Ceiling fan (optional 29CK & 28CR, standard all others with 2 in model 40C, 40GS, and 40SRSS6)
- Night lights throughout (GS models only and 40SRSS6 only)
- USB 12V chargers ((3)standard GS models and 40SRSS6 , optional all others)
- Inset coffered ceiling panel w/LED and accent lights (n/a 29CK)
- Water filter (optional 29CK & 28CR, standard all others)
- LED interior lighting throughout
- LED rope lights/living room valance (n/a 29CK)
- 32" TV Entertainment center w/fireplace - bedroom (standard GS models only and 40SRSS6)
- Magazine rack (color coordinated) and key hooks
- Pleated night shades throughout
- Rear screen wall (optional 29CK & 28CR, standard all others)
- Skylight above shower / tub
- Stainless steel galley sink w/pull-out faucet (standard 29CK & 28CR only)
- Stainless steel galley sink w/high-rise pull-down faucet (n/a 29CK & 28CR)
- Angled glass corner shower enclosure (n/a 34GS, 37GS, 40GS, 40SRSS6)
- Upgraded power vents (optional)
Appliances
- DSI LP water heater, 2-way 110V / LP (6 gallon 29CK & 28CR, 10 gallon all others)
- 30K BTU furnace
- 4.0 KW Onan / 30AMP / Transfer Switch
- A/C living room w/ducting (BTU's) (13.5K 29CK & 28CR, all others 15K)
- AM/FM/CD/DVD Player w/4 inside and 2 outside speakers (n/a GS models and 40SRSS6)
- Residential style sound system and powered subwoofer (standard GS models and 40SRSS6, optional all others)
- Large double door refrigerator (29CK & 28CR features a 6 cu. ft., all others an 8 cu. ft. model)
- Three burner range with oven (n/a 40GS & 40SRSS6)
- Glass top stainless range (standard 40GS & 40SRSS6, optional all others)
- Microwave oven w/separate vent hood (light and exhaust) (29CK, 28CR 32CR, 35CR only)
- XL Microwave oven with over-the-range exhaust (n/a 29CK, 28CR, 32CR, 35CR)
- Exterior 40" TV with luggage door (n/a 29CK, CR models, and 40SRSS6) (standard 34GS, 37GS, and 40GS)
- Flat screen TVs (diagonal inches) 32" or (2) 32", 32" & 40", plus 55" 40SRSS6 (depends on model)
Furniture
- Two swivel /rocker chairs w/table & picture window
- Rear power bunk w/futon and bunk with ladder (upper)
- Rear power sofa bed and power bunk futon w/ladder
- Living room fold-up sofa bed (road side)
- Pillow-top mattress w/coordinated bedspread (bedroom)
- Memory foam mattress w/coordinated bedspread (bedroom) (optional)
- Rear table and legs (n/a 29CK & 28CR, standard all others)
- Opposing dinettes (optional)
Miscellaneous
- Power and cooling upgrade package includes: 5.5 Onan generator upgrade, 13.5K BTU bedroom A/C, 50 Amp Service (n/a 29CK, optional all others)
- Artic package includes: Heated enclosed tanks/valves, relfected floor insulation, heat ducting system for furnance, double insulation in ceiling (optional)
- Upgraded 15K BTU A/C (29CK & 28CR only)
- Bedroom Wardrobe slide out (n/a 29CK) (optional all others)
- Bedroom Vanity slide out (n/a 29CK) (optional all others)
- Central Vacuum system (optional)
- Rear patio (optional, note: If 29CK has slide out the rear patio option is n/a)
Travel Trailer
Chassis
- 102" Wide body platform (8" l beam)
- 15" deluxe aluminum alloy wheels (IPO Chrome) (n/a 19SS, optional all others)
- 7' Laminated ramp door with full-length latches
- Fiberglass, laminated aluminum-framed sidewalls
- Upgraded suspension system (optional)
- Spare tire and carrier
- Stab jacks (4)
- Electric Tongue Jacek (optional)
- Drive-on wheel wells (optional)
- No wheel weels, flat-to-floor (n/a)
Exterior
- LED high-end tail lights
- LED running lights
- Manual awning (n/a 30CK)
- Powered awning (standard 30CK, optional all others)
- Integrated rear spoiler
- Walk-on roof w/folding ladder (27FS & 30CK only - optional)
- Black tank flush
- Dual 20 lb LP tanks
- Thermo pane windows (30CK only - optional)
- Rear patio cables (optional)
Interior
- Crown molding (23SS only)
- High-gloss laminated counter-tops throughout
- Carpet kit (30CK only - optional)
- Inset coffered ceiling panel w/LED and accent light (n/a 19SS & 23FS, standard all others)
- LED interior lighting throughout
- Magazine rack with key hooks
- Pleated night shades throughout (standard 23SS & 30CK, optional all others)
- Rear screen wall (optional)
- Skylight above shower/tub (standard 19SS & 23SS, n/a all others)
- Angled glass corner shower enclosure (23FS, 25FS & 27FS only)
- Tub w/Molded surround enclosure and shower curtain (19SS and 23SS only)
Appliances
- 160-Watt solar power system (optional)
- DSI LP Water heater, 6 gallon
- Heated/Enclosed tanks & knife valves (optional)
- Furnace (BTUs) 30K
- 4.0 KW Onan / 30 Amp / Transfer switch (n/a 19SS, standard 30CK, optional all others)
- 5.5 KW Onan generator (30CK only - optional)
- 40 Gallon fuel station (19SS optional, standard all others)
- 13.5K BTU A/C living room
- 15K BTU A/C (IPO 13.5K) (optional)
- AM/FM/CD/DVD Player w/4 inside and 2 outside speakers
- Large double door refrigerator (6 cu. ft.)
- Large double door refrigerator (8 cu. ft.) (30CK only - optional)
- Three burner range /oven
- Microwave
- Stainless steel galley (micro, stove, refer panels) (optional)
- 28" Flat screen TV (optional)
- 32" TV - Living Room (n/a 19SS, standard 30CK, optional all others)
- 32" TV - Bedroom (n/a 19SS, optional all others)
Furniture
- Two (2) swivel rockers w/table and picture window (30CK only, optional 23SS & 27FS only)
- Two (2) swivel rockers (IPO sofa) (optional)
- Single swivel rocker w/table (optional)
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
